Arduino - 高階 I/O 功能

在本章中,我們將學習一些高階輸入和輸出功能。

analogReference() 函式

配置用於模擬輸入的參考電壓(即用作輸入範圍頂部的值)。選項是 -

  • DEFAULT - 預設模擬參考電壓為 5 伏(在 5V Arduino 電路板上)或 3.3 伏電壓(在 3.3V Arduino 電路板上)

  • INTERNAL - 內建參考電壓,ATmega168 或 ATmega328 等於 1.1 伏,ATmega8 等電壓為 2.56 伏(Arduino Mega 不提供)

  • INTERNAL1V1 - 內建 1.1V 基準電壓源(僅限 Arduino Mega)

  • INTERNAL2V56 - 內建 2.56V 基準電壓源(僅限 Arduino Mega)

  • EXTERNAL - 施加到 AREF 引腳的電壓(僅 0 至 5V)用作參考

analogReference() 函式語法

analogReference (type);

type - 可以使用任何型別的跟隨(DEFAULT,INTERNAL,INTERNAL1V1,INTERNAL2V56,EXTERNAL)

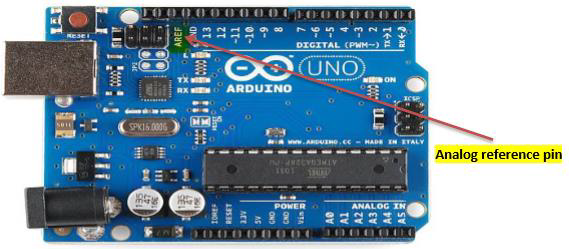

對於 AREF 引腳上的外部參考電壓,請勿使用低於 0V 或高於 5V 的電壓。如果在 AREF 引腳上使用外部參考,則必須在呼叫 analogRead() 函式之前將模擬參考設定為 EXTERNAL。否則,你將短接有效參考電壓(內部產生)和 AREF 引腳,可能會損壞 Arduino 板上的微控制器。

微控制器進行

或者,你可以通過 5K 電阻將外部參考電壓連線到 AREF 引腳,從而可以在外部和內部參考電壓之間切換。

請注意,電阻會改變用作參考電壓的電壓,因為 AREF 引腳上有一個內部 32K 電阻。兩者充當分壓器。例如,通過電阻施加的 2.5V 將在 AREF 引腳處產生 2.5 * 32 /(32+5)= ~2.2V。

int analogPin = 3;// potentiometer wiper (middle terminal) connected to analog pin 3
int val = 0; // variable to store the read value

void setup() {
   Serial.begin(9600); // setup serial
   analogReference(EXTERNAL); // the voltage applied to the AREF pin (0 to 5V only)
      // is used as the reference.
}

void loop() {
   val = analogRead(analogPin); // read the input pin
   Serial.println(val); // debug value
}
